TECHNOLOGY

GS and U Series Touch screen Options

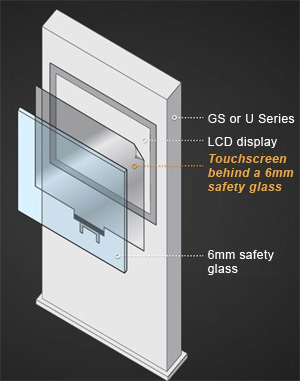

Laminate the touch foil behind a safety glass the glass and integrate into our GS or U Series.

Fitting behind the glass to create a vandal and weather proof touch solution.  Ideal for outside enclosures.

CIP900-IP-TR

• Support HD video 1080p and PC WUXGA (1920 x 1200) resolution.
• Based on Internet Protocol, all standard Giga or Fiber LAN switch HUB and CAT 6/7 cables can be used for inter-connection. Easy cabling, easily install, and easily maintain.
• For the digital signage application, support one-to-one and one-to-many modes with no signal delay.
• Support 4 x USB over IP devices for the KVM extension, you can attach keyboard, mouse, storage, speaker, microphone at the CIP900-IP-R receiver site to control the PC at the AV-900T transmitter site.
• Built-in USB sound card, you can directly connect speaker and microphone on the CIP900-IP-R Receiver.
• Support IR bridge, you can use the IR remote controller at CIP900-IP-R Receiver site to control the set-top box at the CIP900-IP-T transmitter site.
• Support RS232 bridge, DTE/DCE are built-in on both sites.
• Pure hardware design, plug-and-play, no additional software installation is required.

GSCAT5-AV

• Through the VGA Extender, you can use one PC to display identical image and extension of VGA signal up to 180/300 meter on monitors.
• Equalization length is adjustable.
• VGA signal gain is adjustable.

GSCAT5-DVI DVI CAT5 Extender video distribution and extension via CAT5

• Top Image Quality at all Resolutions
• Video Resolutions up to 1600 x 1200 @ 60Hz (1280 x 1024 @ 75Hz) on all distances up to the maximum distance.
• User selectable: DCC-Information used from the remotely located Monitor, from the locally located Monitor or from an internal DDC Table.
• Distances: 220 ft regular STP CAT5e or STP CAT6.
• Compatible with all operating systems.
• Rack Mount options (19"): Mount up to 4 devices in a 19”/1U rack mount kit. This saves expensive rack space.

GSCAT5-S Audio and video distribution and extension via CAT5

• Uses easy to install, inexpensive CAT-5/5e/6/7/8.
• Output reaches up to 1,000 feet (300 m).
• Supports high resolution clear video up to 1900x1200.
• HDTV compatible (720p, 1080i,1080p).
• 300 MHz Bandwidth.
• Sends high-resolution XVGA and Stereo Audio signals.
• Compatible with VGA, XGA, Sun, MAC and SGI.
• Sync Format / Polarity Preservation.
• Compatible with Line Level Stereo Audio Signals.
• High ground loop immunity.
• Designated trimmer in the remote unit to compensate for cable length.
• Compact metal case enclosure.
• Optional power supply for remote unit.
• Remote units come with buffered outputs.

SV330A Video Wall Controllers

GSIR-TS-S (Touchscreen)

• Faithfully preserves original image clarity – minimum or no reduction of light transmission rate from the display.
• Finger or gloved operation - Operate with any object of width 4mm.
• Maintenance free, scratch-proof, water resistant, ideal for unattended public applications.
• Durable, maintance free with long-life expectancy.
• Standard and custom size available.
• Plug and play, easy installation.

GSPC780 (Product Discontinue, Call 510-226-9226 for Replacement item)

• AMD® ASB1 (BGA) processors with 1600MHz Hyper Transport 1.0 support.
• RS780E Integrated UVD, MPEG2, and H.264/AVC Full HD Decoder.
• Dual display support by VGA + HDMI /LVDS+ VGA/HDMI + LVDS.
• ATI Radeon HD3200 Graphic core for DX10 support.
• TPM V1.2 hardware security function supported.
• Single 12V DC input and low profile design • IEI One Key Recovery solution allows you to create rapid OS backup and recovery.
